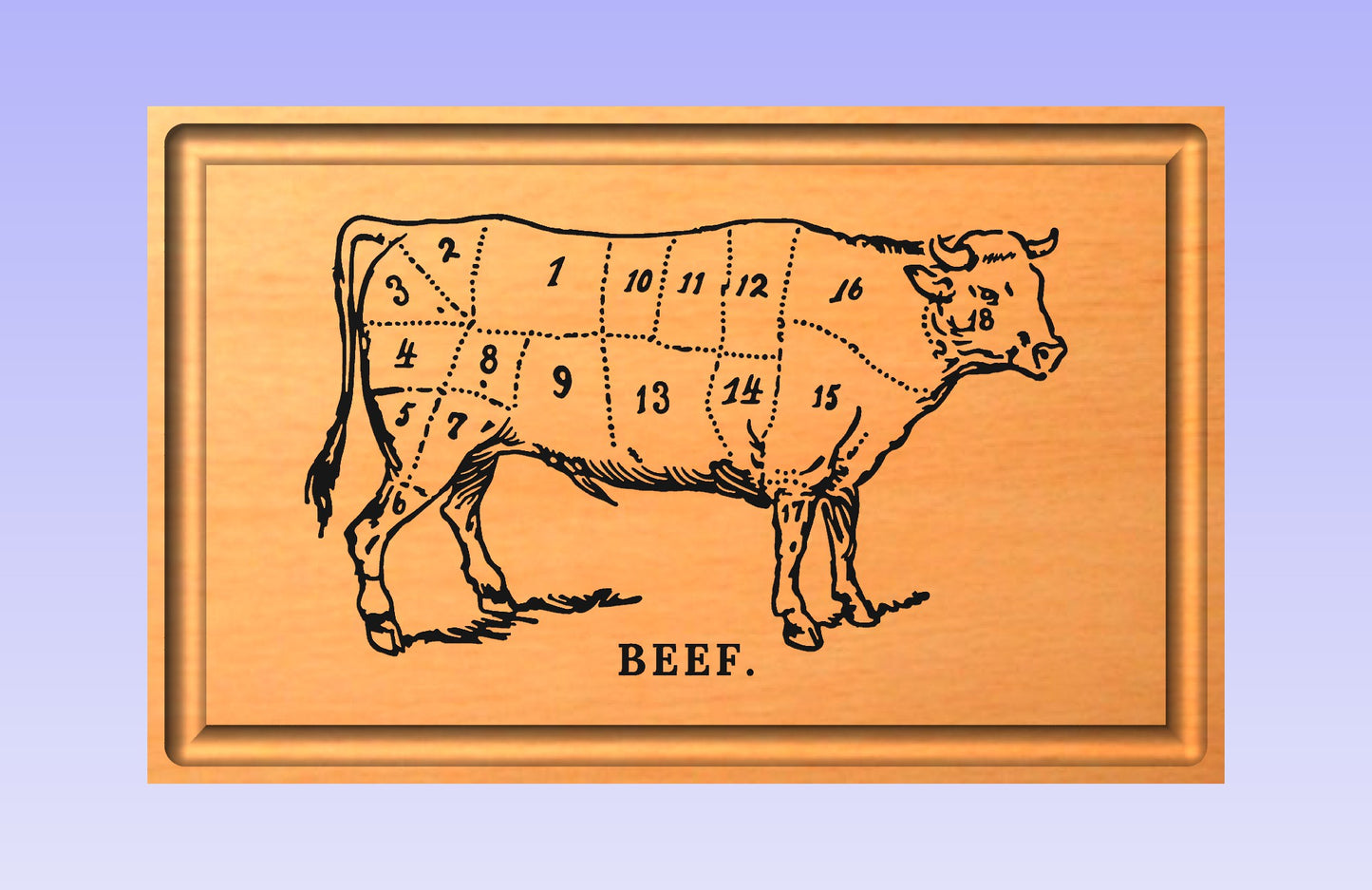

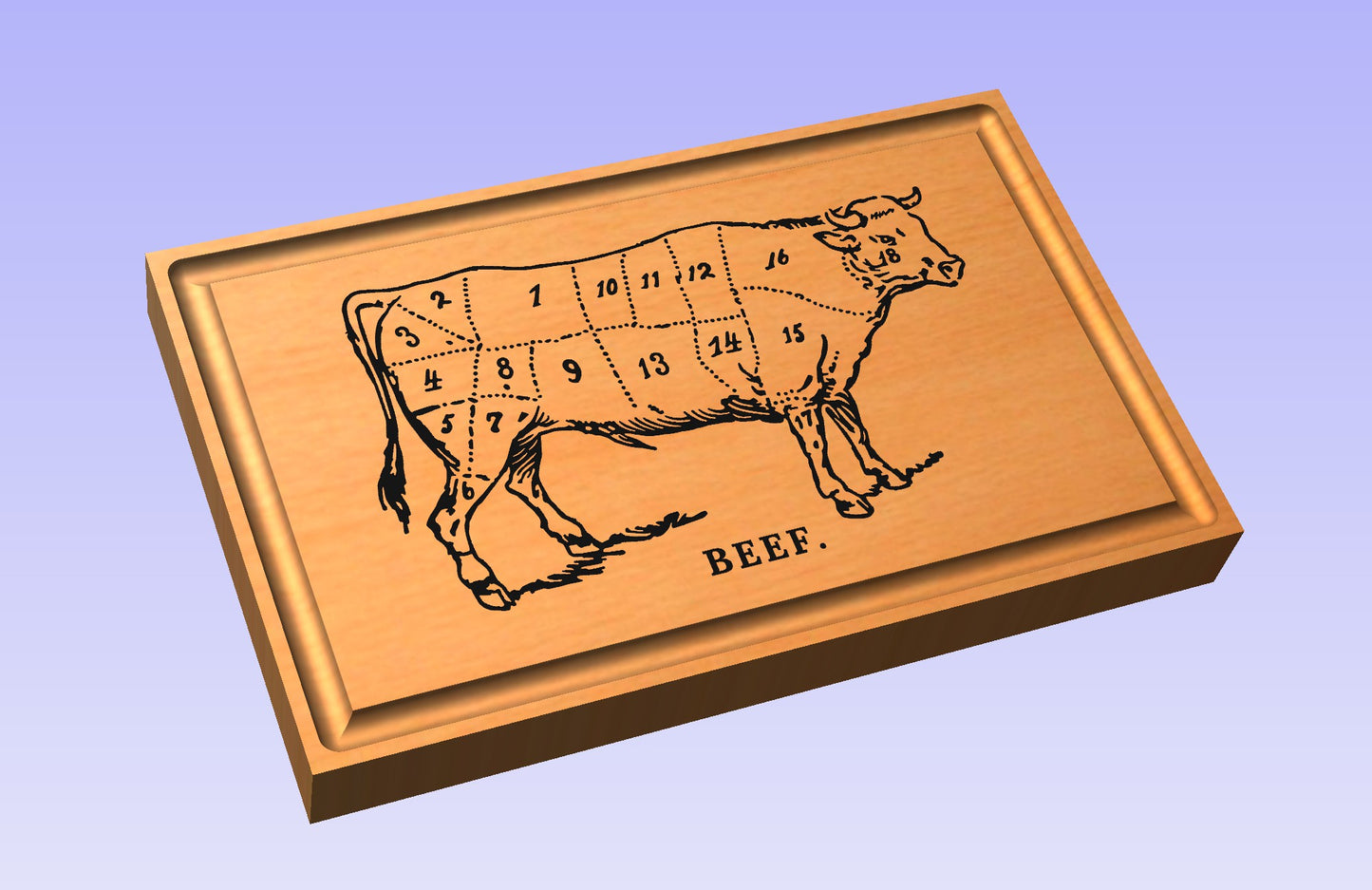

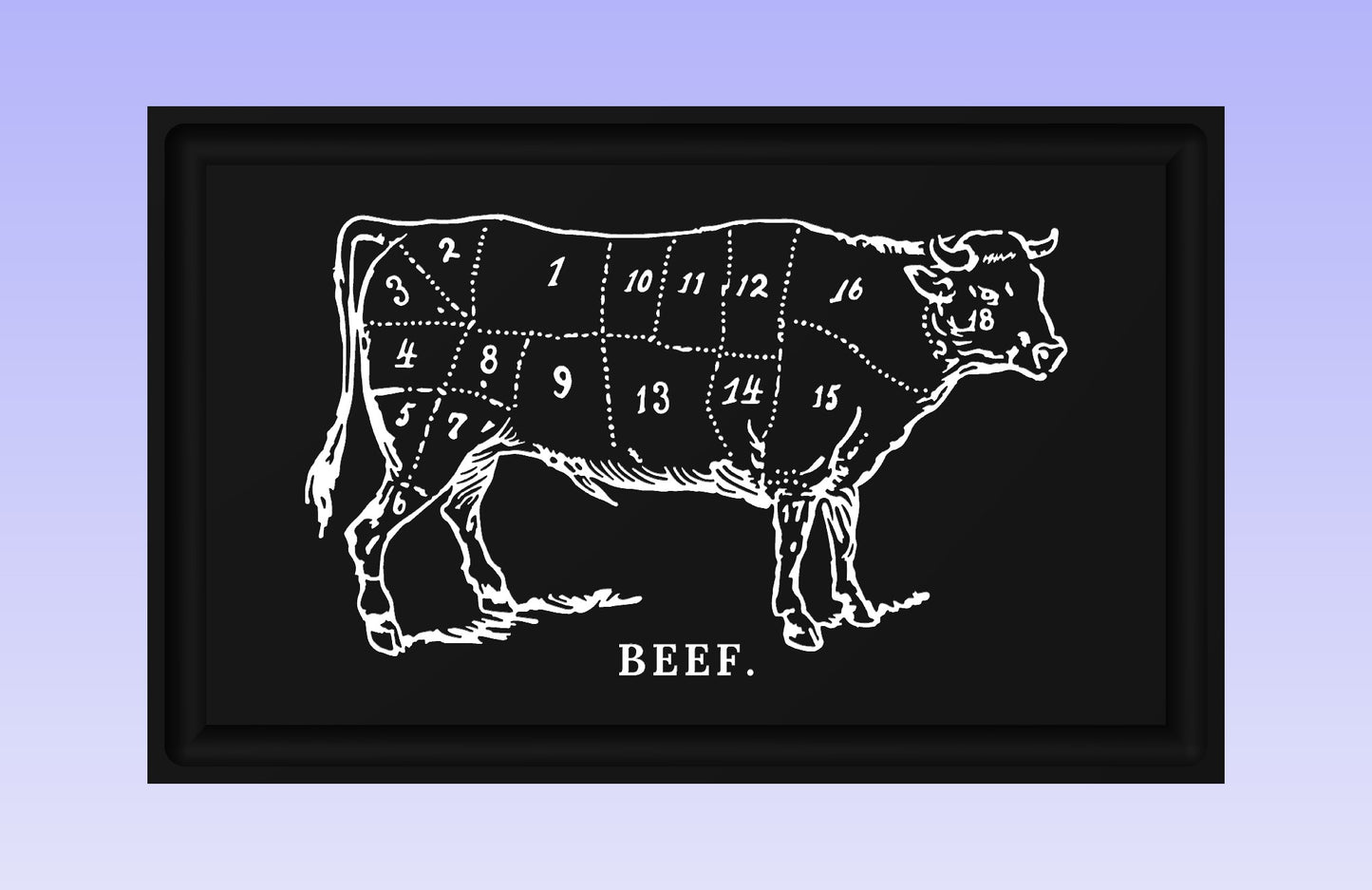

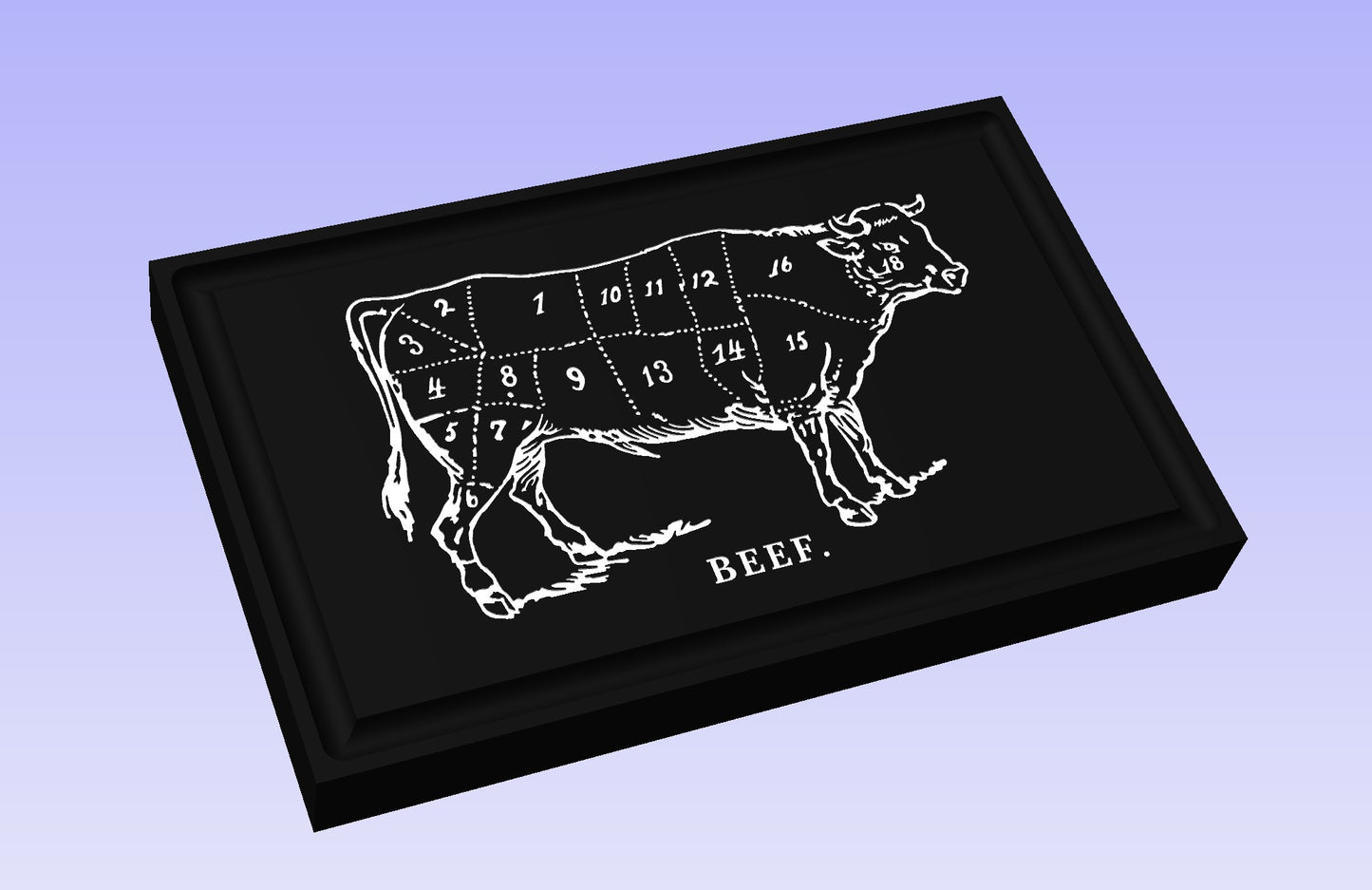

Beef Cuts 1913 19x12" CNC inlay plan

This is an original illustration from 1913, featuring a vintage Beef butcher chart with numbered cuts.

❗️BUYING A FILE DOES NOT GUARANTEE A PERFECT RESULT. THERE ARE A LOT OF NUANCES IN WORKING WITH INLAYS !!!

🧠 DIFFICULTY LEVEL:
Normal.

📁 FILE FORMATS:
Here is the Vectric file for the CNC inlay, built using the same structure, layer logic, and toolpath types I use in my own shop.
You will receive it in four different formats: AI, DXF, SVG, and CRV.

💻 SOFTWARE VERSION:
All files were created in VCarve Pro version 11.5
Please make sure you can open them before purchasing.

📦 WHAT'S INCLUDED IN THE CRV FILE:
• Separate toolpaths for the pocket
• Separate vector layers and toolpaths for the inlay insert
• Universal inlay parameters — may still require fine-tuning depending on your router bit and milling depth

⏱️ ESTIMATED CARVING TIME:
Approximately 3 hours for both the pocket and the inlay insert.

🎯 VECTOR QUALITY:
All vector artwork is clean, precise, and free of artifacts — optimized for smooth toolpaths and perfect inlay fits.
The design is suitable not only for CNC carving but also for laser cutting and engraving.

🛠️ RECOMMENDED TOOLING AND SETUP:
• I use a TBN (Tapered Ball Nose) bit with a 12.4° angle
• Other bits can be used as long as the cutting depth is reduced accordingly
• Design is layered for easy color separation — ideal for multitone or contrasting wood combinations

🌳 RECOMMENDED WOOD TYPES FOR BEST RESULTS:
• Pocket (base): maple.
• Inlay insert: walnut.

📬 SUPPORT CONTACT:
If you encounter any issues with downloading, please email us at broinwood@gmail.com.
