Custom Cutting Boards by Broinwood

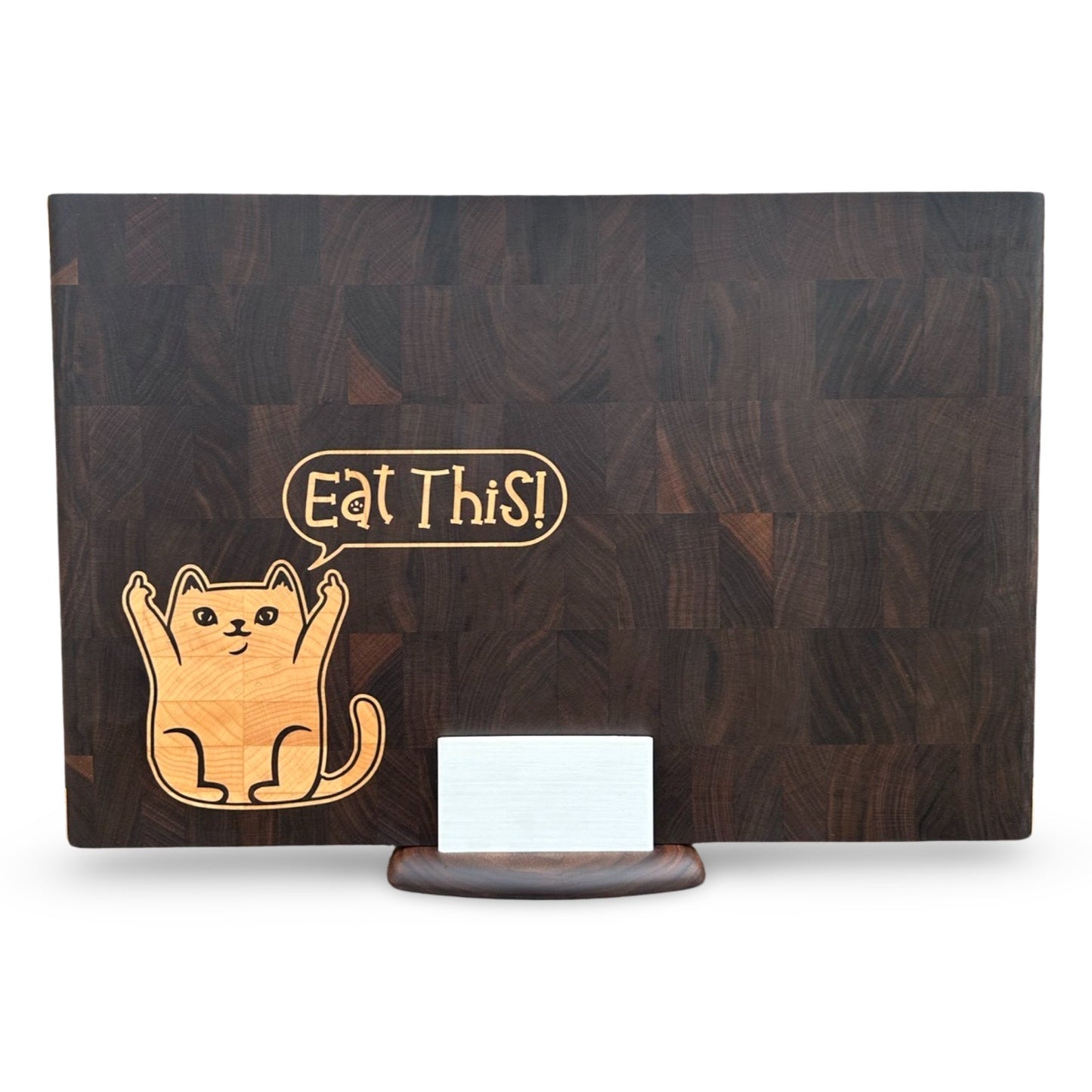

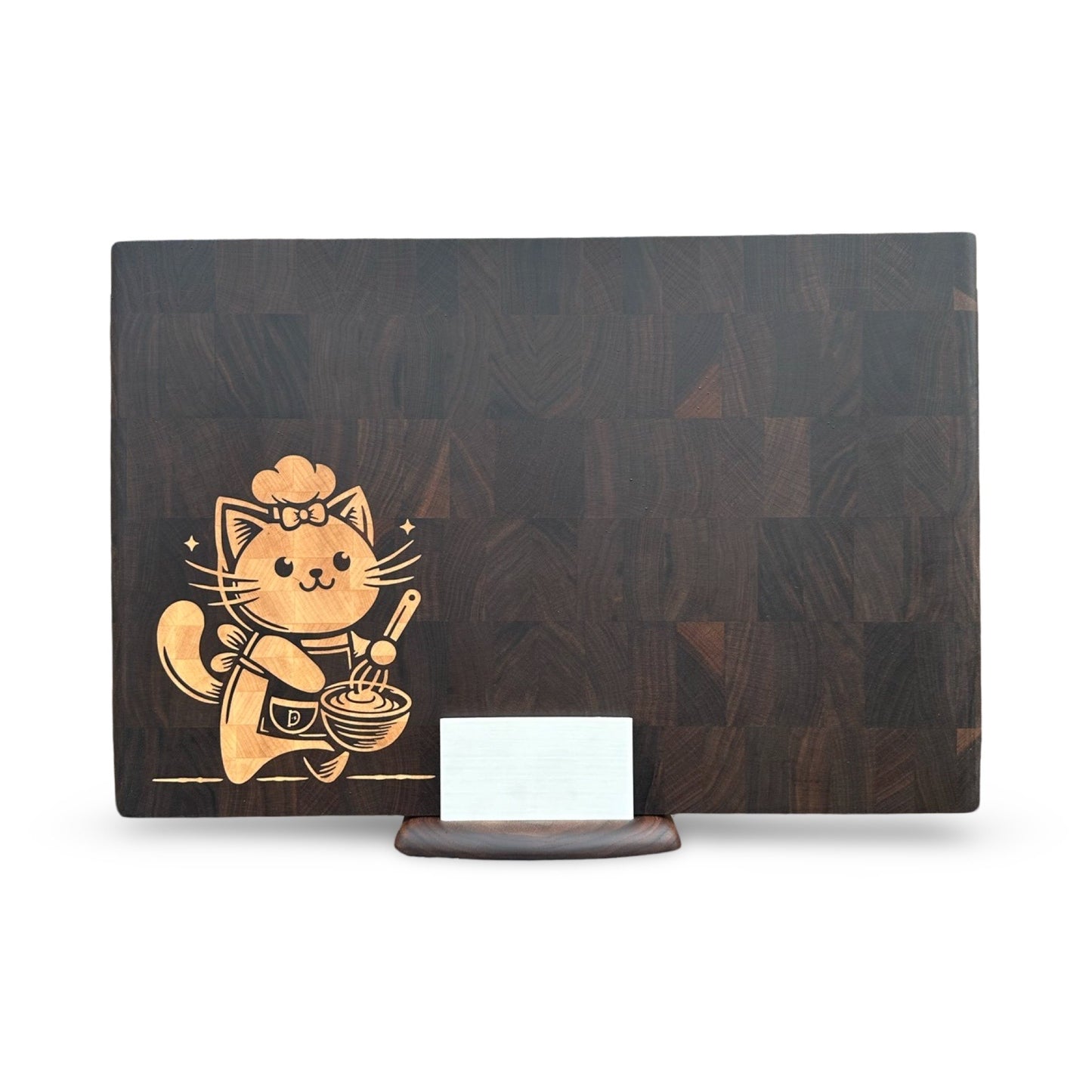

Double sided Cat board 19x12" CNC inlay plan

Double sided Cat board 19x12" CNC inlay plan

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Sale Sold out
Shipping calculated at checkout.
Package

❗️BUYING A FILE DOES NOT GUARANTEE A PERFECT RESULT. THERE ARE A LOT OF NUANCES IN WORKING WITH INLAYS !!!

📦 TWO PURCHASE OPTIONS: You can buy the Complete Package (the Vectric CRV file plus AI, DXF, and SVG vector files) or Vector Only (AI, DXF, and SVG without the CRV file). Select your option above.

🧠 DIFFICULTY LEVEL:
Normal.

📁 FILE FORMATS - CHOOSE YOUR PACKAGE:
Complete Package: The Vectric CRV file for the CNC inlay, built using the same structure, layer logic, and toolpath types I use in my own shop, plus the vector artwork for both sides in AI, DXF, and SVG formats.
Vector Only: AI, DXF, and SVG vector artwork. No CRV file, no toolpaths. A great choice if you build your own toolpaths or want the design for laser cutting and engraving.

💻 SOFTWARE VERSION:
All files were created in VCarve Pro version 11.5
Please make sure you can open them before purchasing.

📦 WHAT'S INCLUDED IN THE CRV FILE (COMPLETE PACKAGE ONLY):
• Separate toolpaths for the pocket
• Separate vector layers and toolpaths for the inlay insert
• Baseline Inlay Parameters may still require fine-tuning depending on your router bit and milling depth

⏱️ ESTIMATED CARVING TIME:
Approximately 2 hours for both the pocket and the inlay insert.

🎯 VECTOR QUALITY:
All vector artwork is clean, precise, and free of artifacts — optimized for smooth toolpaths and perfect inlay fits.
The design is suitable not only for CNC carving but also for laser cutting and engraving.

🛠️ RECOMMENDED TOOLING AND SETUP:
• I use a TBN (Tapered Ball Nose) bit with a 12.4° angle
• Other bits can be used as long as the cutting depth is reduced accordingly
• Design is layered for easy color separation — ideal for multitone or contrasting wood combinations

🌳 RECOMMENDED WOOD TYPES FOR BEST RESULTS:
• Pocket (base): walnut.
• Inlay insert: maple, cherry.

📬 SUPPORT CONTACT:
If you encounter any issues with downloading, please email us at broinwood@gmail.com
