Complete Spoilboard System Set

Complete Spoilboard System Set

Regular price $49.00 USD
Regular price Sale price $49.00 USD
Sale Sold out
Shipping calculated at checkout.

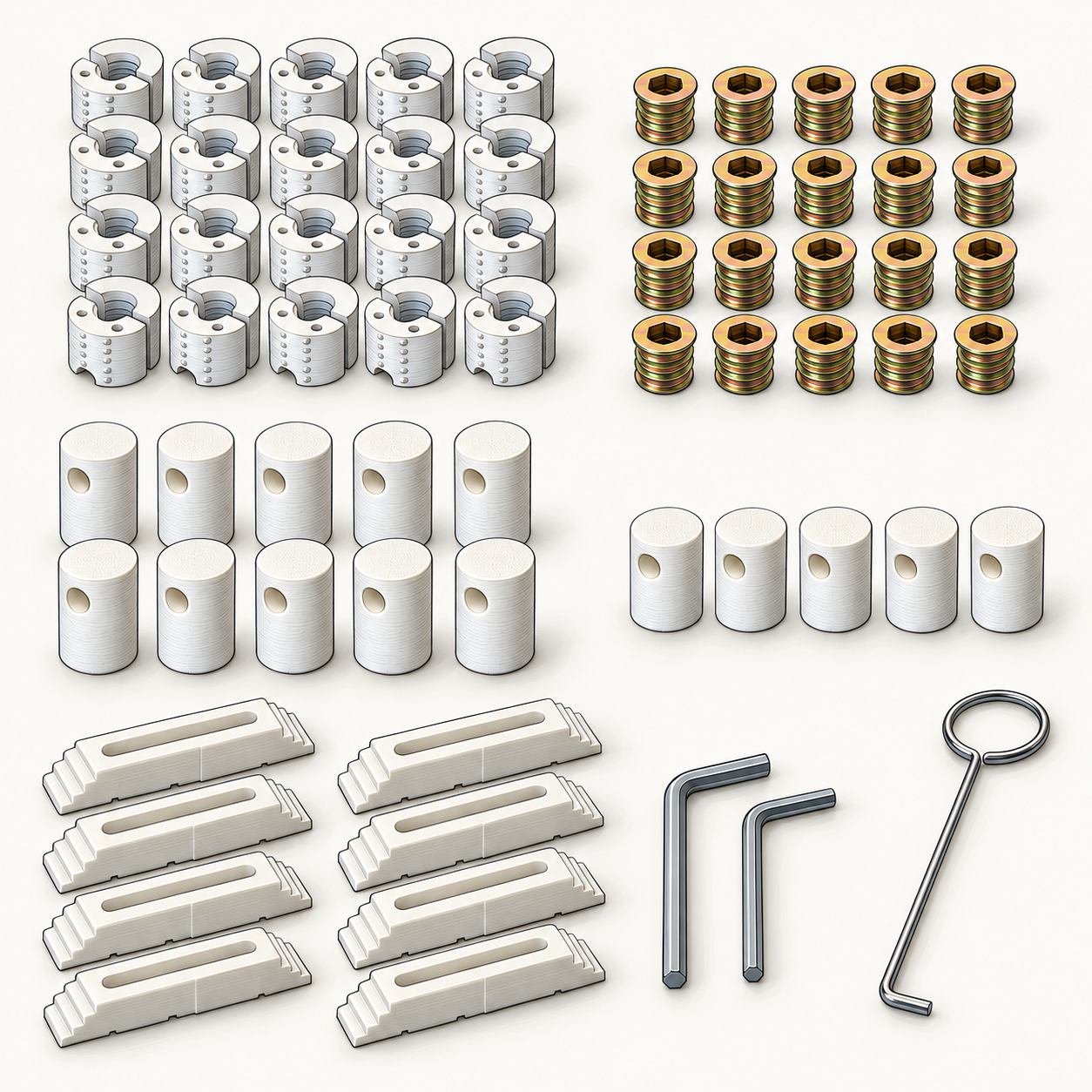

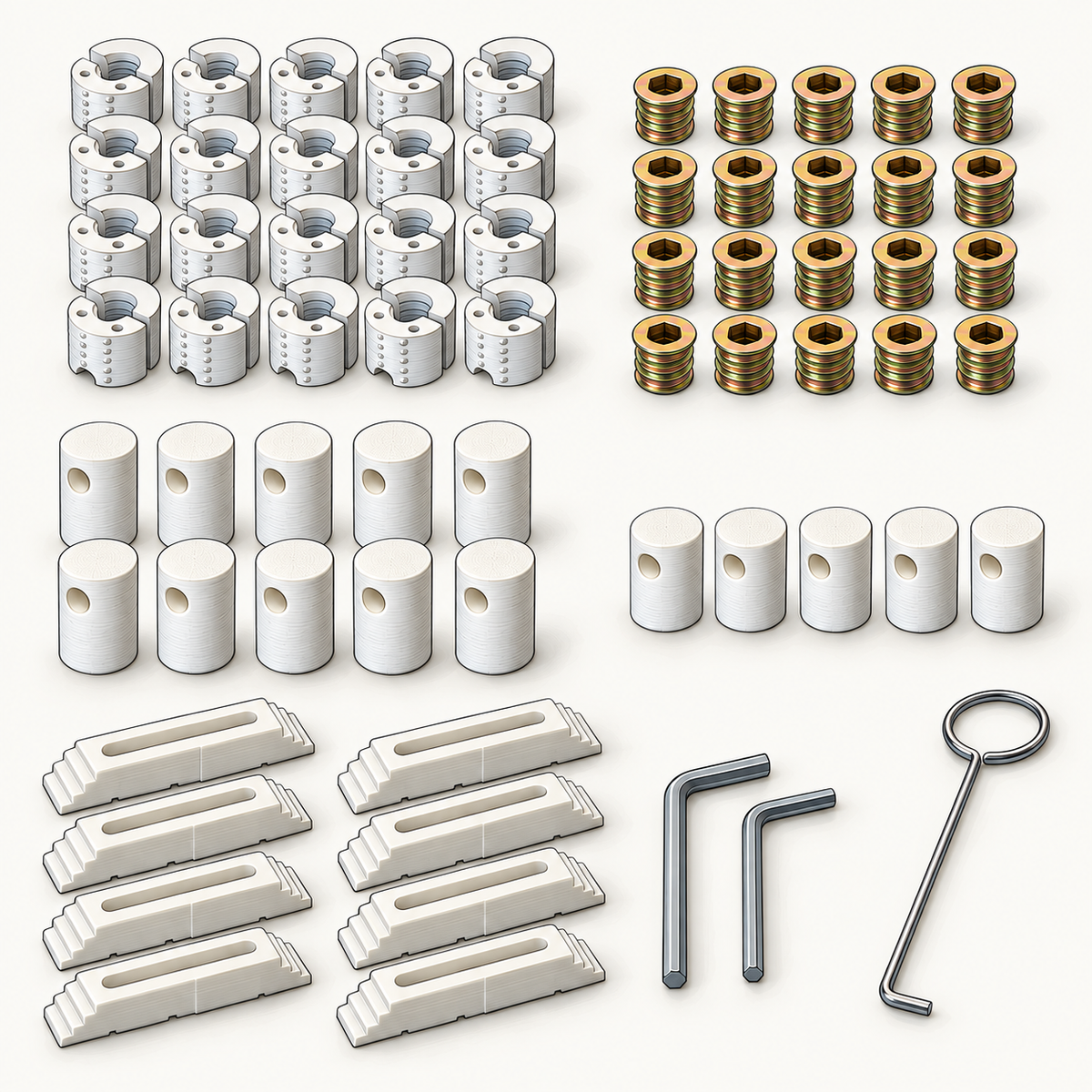

The complete set includes:

  • 25 × Split Expansion Anchors
  • 25 × Threaded Inserts
  • 10 × 40 mm Guide Pins
  • 5 × 30 mm Guide Pins
  • 8 × Low-Profile Hold-Down Clamps
  • 2 × Allen Wrenches
  • 1 × Split Expansion Anchor Removal Tool


Bolts Not Included

Mounting bolts are not included with the set. This allows you to choose the bolt lengths that best match your workpiece thickness and setup.

I use 1/4"-20 bolts in several lengths:

Vectric Setup Files

Two Vectric files are available to help you plan your spoilboard layout.

1. Example Layout

An example showing how you can arrange the spoilboard system components and organize the layers and toolpaths in Vectric. Use it as a starting point and adapt the layout to your own CNC machine and table.

Download the Example Layout

2. My Onefinity Foreman Setup

This is the exact file I used to machine the spoilboard on my Onefinity CNC Gen 2 Elite Foreman, a 4 × 4 ft machine fitted with the Onefinity QCW Frame for the Foreman.

The layout measures 1244.6 × 1185 mm and uses the upper-left corner as its reference point. The layers and toolpaths are named by operation, with the toolpaths arranged in the machining sequence I used.

The file accounts for the aluminum support rails beneath the MDF. Anchor pockets above those rails do not have through clearance holes for the mounting bolts. The “Support Clearance Check – V-Bit” toolpath lets you check the layout’s alignment with the gaps between the rails before machining.

Download My Onefinity Foreman Layout

Please review the dimensions, tool settings, machining depths, and clearance-hole positions before running either file. Adjust them to suit your machine, material, and setup.
