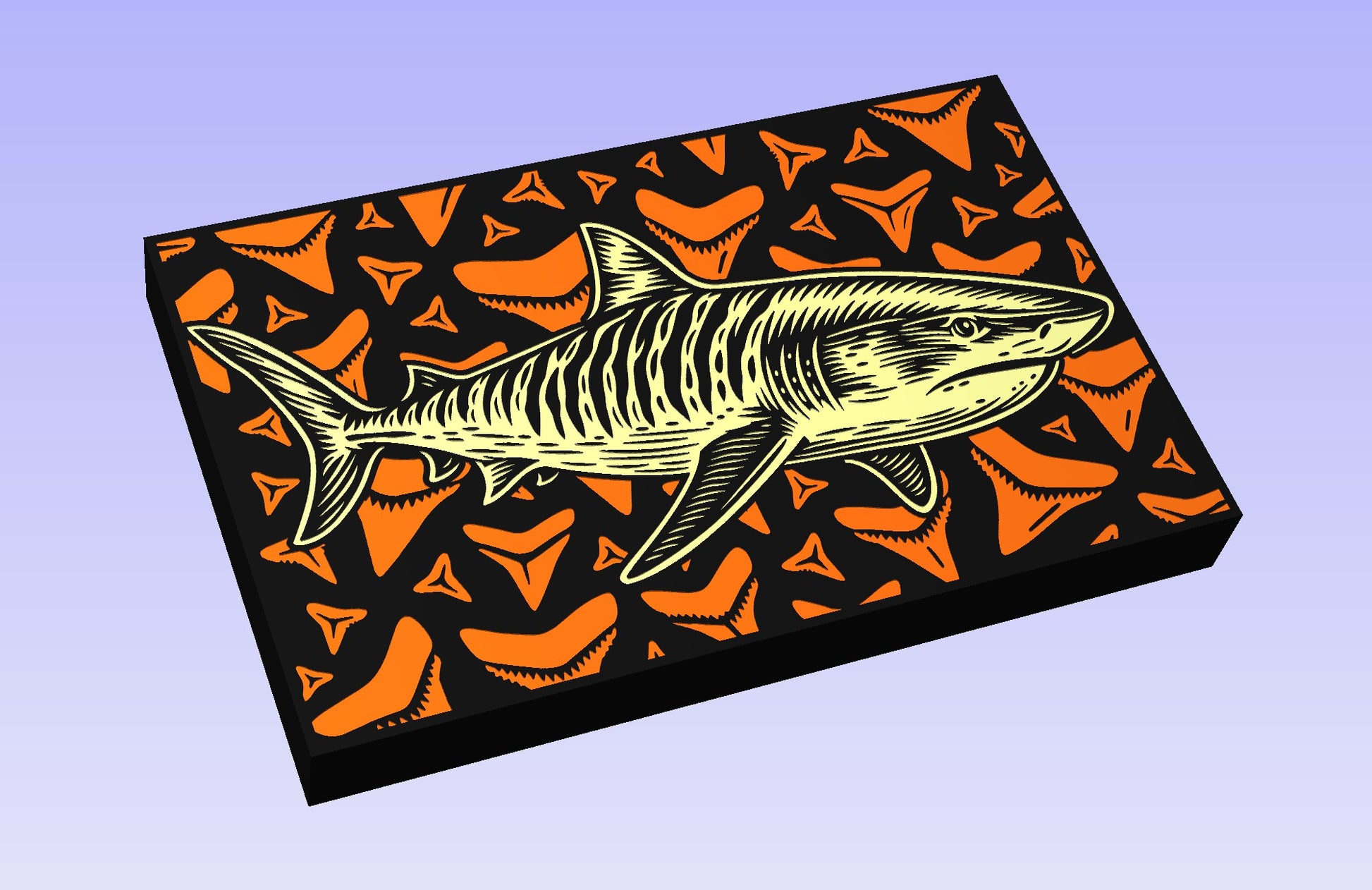

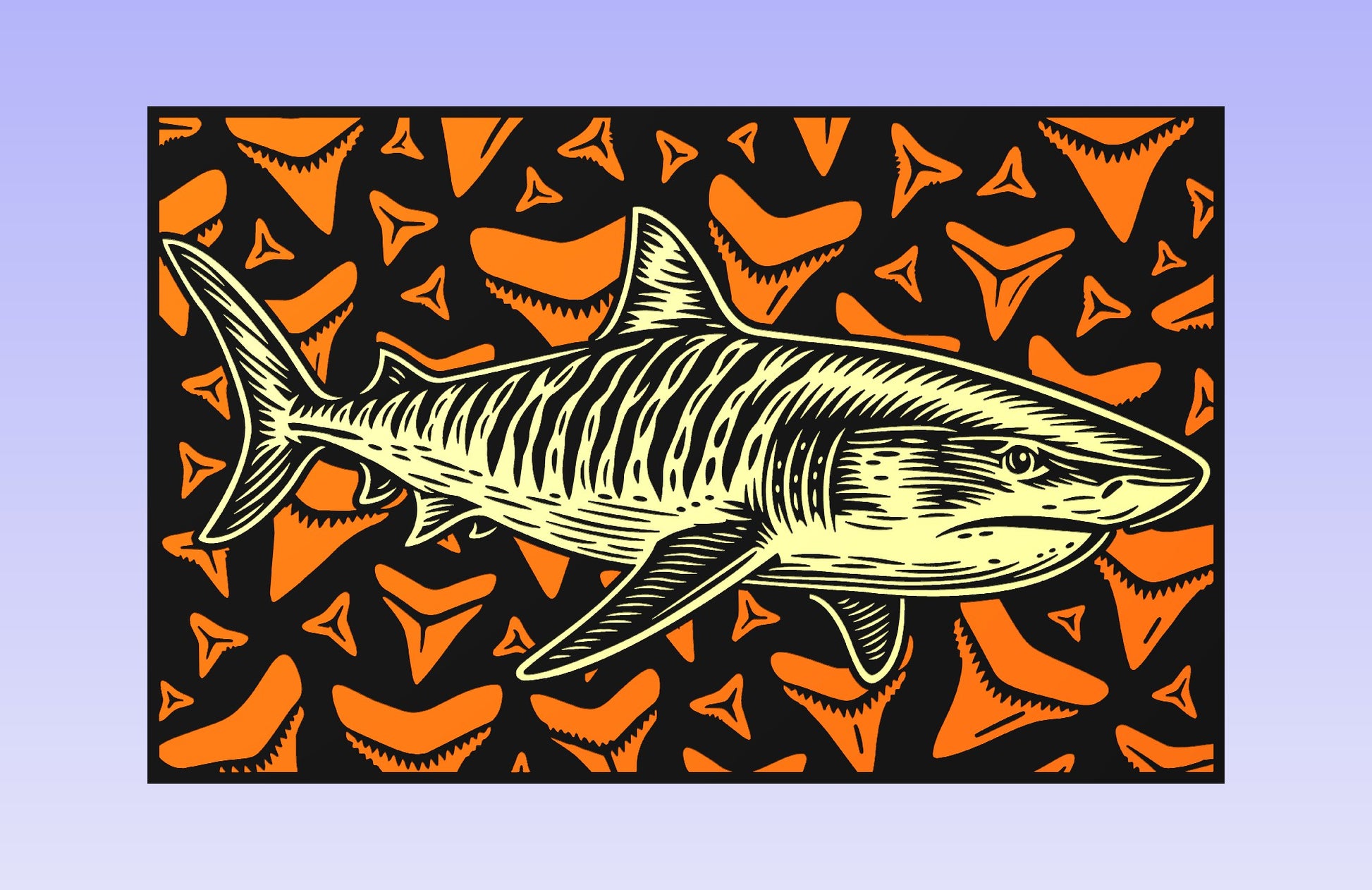

Tiger Shark 19x12" CNC inlay plan

❗️BUYING A FILE DOES NOT GUARANTEE A PERFECT RESULT. THERE ARE A LOT OF NUANCES IN WORKING WITH INLAYS !!!

🧠 DIFFICULTY LEVEL:
Normal.

📁 FILE FORMATS:
Here is the Vectric file for the CNC inlay, built using the same structure, layer logic, and toolpath types I use in my own shop.
You will receive it in four different formats: AI, DXF, SVG, and CRV.

💻 SOFTWARE VERSION:
All files were created in VCarve Pro version 11.5.
Please make sure you can open them before purchasing.

📦 WHAT'S INCLUDED IN THE CRV FILE:
• Separate toolpaths for the pocket
• Separate vector layers and toolpaths for the inlay insert
• Baseline Inlay Parameters may still require fine-tuning depending on your router bit and milling depth

⏱️ ESTIMATED CARVING TIME:
Approximately 7 hours for both the pocket and the inlay insert.

🎯 VECTOR QUALITY:
All vector artwork is clean, precise, and free of artifacts, optimized for smooth toolpaths and perfect inlay fits.
The design is suitable not only for CNC carving but also for laser cutting and engraving.

🛠️ RECOMMENDED TOOLING AND SETUP:
• I use a TBN (Tapered Ball Nose) bit with a 12.4° angle
• Other bits can be used as long as the cutting depth is reduced accordingly
• Design is layered for easy color separation, ideal for multitone or contrasting wood combinations

🌳 RECOMMENDED WOOD TYPES FOR BEST RESULTS:
• Pocket (base): walnut
• Inlay insert: maple, cherry
